While A if B do .. else do .. end while
For above example, while doing decomposition, I can say its
D2 (D1)
i.e while and then inside while, its if-then-else. Considering same situation. How can you represent
CONTINUE and BREAK statements
Ever for FOR statement there is no defined terminology like for while and if then else. FOR statement falls under while. My prof says in theory, there is nothing about Break and continue statement and I couldnt find anything online too. For example :
# include <stdio.h> int main(){ float num,average,sum; int i,n; printf("Maximum no. of inputsn"); scanf("%d",&n); for(i=1;i<=n;++i){ printf("Enter n%d: ",i); scanf("%f",&num); if(num<0.0) break; //for loop breaks if num<0.0 sum=sum+num; } average=sum/(i-1); printf("Average=%.2f",average); return 0; }
Control flow graph for this is as below: the nodes has line number written : (Sorry the image is side ways) I decomposed this as :
P1;P1;D2(P1;P1;D1);P1 * P1 represents set of statements outside loops
I’m not sure if this is correct. My professors says to use something as D22 for break, like create a new term from above image.

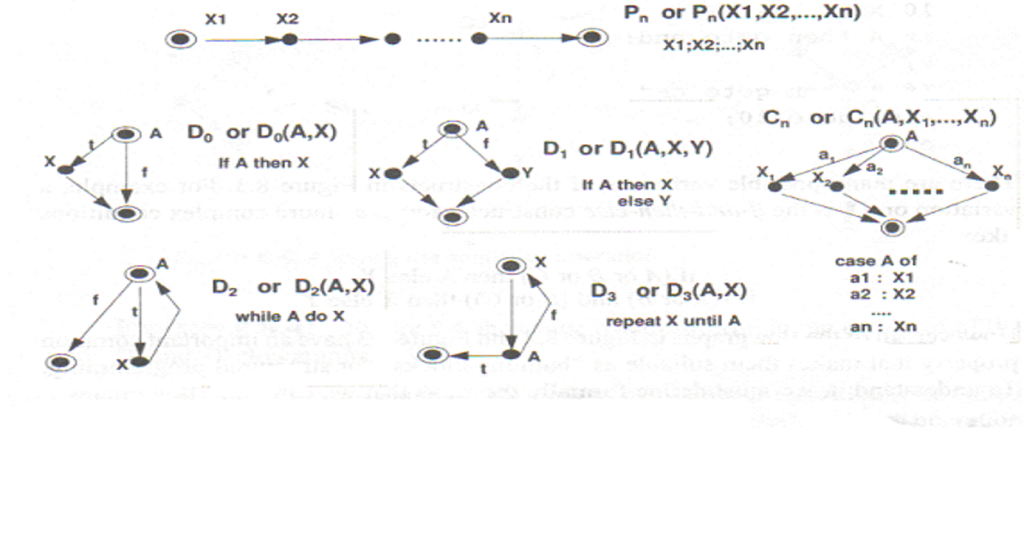

My main question here is the decomposition. I Know that i drew the CFG correctly, but is the decomposition correct according to the first image?. The break state kind of creates a while as you can see in CFG, but i’m not sure if it has to be considered as while and I guess we cannot, as per my professor.
I am working on this and wanted to know, if anyone has come across something for Break and continue statements while decomposition of graphs, please let me know. Thanks. PS : Please, Let me know, if am unclear and if anymore info is needed. I can probably write down an example and upload the picture.
Asked By : TheUknown
Answered By : Wandering Logic
while i<=n: something if condition break something_else i = i+1
becomes
if i<=n: repeat: something if condition break something_else i = i+1 until not(i<=n)
A second preprocessing step of saving the (possibly complicated) calculation of the loop condition as a boolean temporary variable will also help. So:
if i<=n: repeat: something if condition break something_else i = i+1 t0 = not(i<=n) until t0
Now we can convert our break into a if-else:
if i<=n: repeat: something if condition: t0 = false else: something_else i = i+1 t0 = not(i<=n) until t0
So we’ve converted, but the result is kind of ugly: we now have to keep track of t0 and we have two tests where we only had one before. “Structured programming” is not the panacea it is often made out to be.
Best Answer from StackOverflow
Question Source : http://cs.stackexchange.com/questions/23905
